PRODUCT DESCRIPTION:

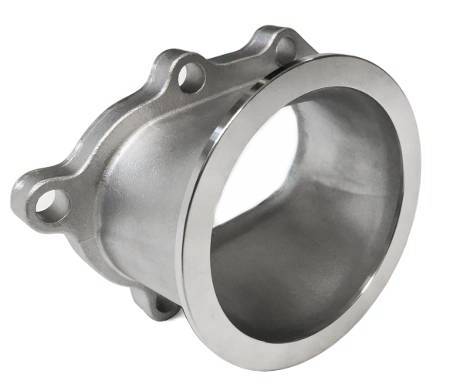

Cast stainless steel 3" V-band adapter for Garrett Turbine Housings with T25 Inlet and GT 5 Bolt Outlet - ATP-HSG-005.
Offers a smooth and high flowing transition from the 5 bolt outlet to a 3" V-Band!
** NOT Compatible with Garrett T3 inlet, internally gated, and 5 bolt outlet turbine housings.
PRODUCT SPECIFICATIONS:
* Cast 304 Stainless Steel
* Overall height 2.25" (face of flange to face of flange)
* V-band flange 3" inner diameter and 3.75" outer diameter
* V-band flange height 0.25"
* 5 bolt GT flange height 0.5"
INSTALLATION COMPONENTS:
* Studs (5 units): FST-030
* Lock Nuts (5 units): FST-031
* V-Band Clamp: CLA-013
* V-Band Flange (Down-Pipe Side): FLS-063
* Gasket (5 bolt flange): GSK-016
COMPATIBLE TURBINE HOUSINGS:
* ATP-HSG-005
* ATP-HSG-008
* ATP-HSG-043
* ATP-HSG-136
* ATP-HSG-150
* ATP-HSG-261
* ATP-HSG-364
* ATP-HSG-386
